Jiangsu Baojuhe Science and Technology Co., Ltd. (previous name Jiangsu Bosheng Steel Poles Co.,Ltd)
10 Years
| Ask Lasest Price | |
| Brand Name : | JSBS |
| Model Number : | Q345 |
| Certification : | ISO9001:2008 |
| Price : | USD 30~300 per set |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 200 set per day |
| Delivery Time : | within 15 work days |
We can design products as customers' demand or manufacture for you
if you have pictures or drawing.
Also, if you want to consult the price, please provide the drawings
so that we can tell you the price quickly and accurately.
Steel Pole of National Electrification Administration (Philippines)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT,
45FT
| Height(ft) | Thickness(mm) | Butt Diameter(mm) | Top Diameter(mm) | Design Load(kg) | Yield Stress(MPA) | Zinc Coating(microns) |
| 25 | 2.5 | 152 | 120 | 300 | 345 | 86 |
| 30 | 3.0 | 226 | 127 | 500 | 345 | 86 |
| 35 | 3.0 | 248 | 127 | 500 | 345 | 86 |
| 40 | 3.0 | 317 | 127 | 500 | 345 | 86 |
| 45 | 4.0 | 328 | 127 | 750 | 345 | 86 |
Details
| Height | 30FT |
| Type | Burial Type |
| Shape of pole | Octagonal |
| Diameter | 127mm / 226mm |
| Material | Q345 equivalent to S355JR,Grade 50 |
| Thickness | 3.0mm |
| Design Load | 500KGS |
| Welding | Welding complies with CSA and AWS, AWS D1.1 standard. The welders have got corresponding certificate after testing and inspection. |
| Standard | NEA |
| Galvanizing | Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123. |
| Voltage | 15kv |
| Fabrication process | Cutting plate, bending ,forming, automatic welding, drilling holes ,quality check before galvanized, hot dip galvanized, final quality check according to client's requirement. |
Material
| CHINA-GB | AMERICA-ASTM | EQUIVALENT |
| Q235 | Grade D | SS400, S235JO |
| Q345 | Grade50 | S355JR |
| Q420 | Grade60 | S420NL |
| Q460 | Grade65 | S460NL |
Technology:

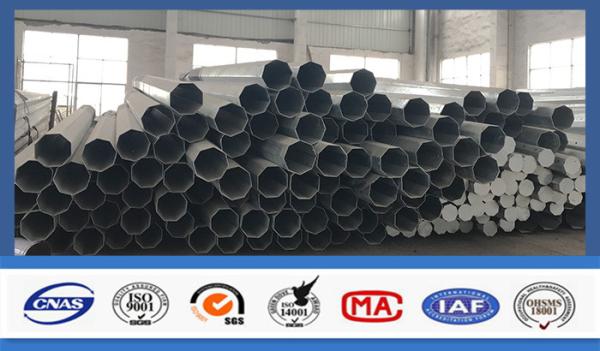

The octagonal steel electrical poles of our company are made of
qualified sheets through bending, forming, automatic welding, hot
dip galvanization. We own advanced production lines, including auto
shearing machine,1600 ton CNC hydraulic bending machine,CNC cutting
machine,auto submerged-arc welding machine,auto welding
machine,hydrautic trimmer,splitting machine.
Welding:
we weld the steel poles with auto submerged-arc welding and auto
welding machines with perfect seam and good quality,we strickly
control the test of the welding by the flaw testing with ultrasonic
crack detection to make sure there is no crack,undercut,slag
inclusion,hole vent for the welding.
Hot dip galvanization:
All our products must be hot dip galvanized which can keep the
steel poles without rust more than 30 years. For steel poles with
3.0mm bare metal thickness, the ASTM A123 standard requires min
average coating thickness 86 microns
Packing&Delivery:
Because there is nearly no any accessories on the poles shaft,so
most of the clients agree with delivery the 25ft -45ft steel poles
without package which can save the space of the container,and also
can save the purchasing cost.
Of couse,if our clients have request or standard for the package of
the steel poles,we are also glad to pack the steel poles according
to client's request.
Customer Service:
After-sale service, Solve your problems within 24 hours, Contact
anytime!
Our Company
Jiangsu Baojuhe Science and Technology Co.,Ltd (the previous name
Jiangsu Bosheng Steel Poles Co.,Ltd) is located in Heqiao Town
Industrial Zone, Yixing District, Wuxi City, Jiangsu Province,
China.
Baojuhe is the specialized manufacturer of various steel poles and steel components including street lighting poles, electric power poles, traffic signal poles, flag poles, wind power poles and microwave communication towers, etc.
1. Are you a manufacturer or a trading company?
A:We are the direct factory manufacturer and the trading company.
2. Where is your company located?
A:Our factory is located in Industrial Zone No.37, Heqiao Town,
Yixing District, Wuxi City, Jiangsu Province, China(mainland).
3. What are your main products?
A:Our main products are electric poles, street lighting poles, high
mast pole, telecommunication tower poles, traffic signal poles,
wind generation poles, etc.
4. What's your nearest port?
A: Shanghai Port.
5. What's your payment term?
A: Normally 30% deposit and rest by TT before shipping. Or L/C.
6. What's your delivery time?
A: Normally within 30 working days.
