Jiangsu Baojuhe Science and Technology Co., Ltd. (previous name Jiangsu Bosheng Steel Poles Co.,Ltd)
10 Years
| Ask Lasest Price | |
| Brand Name : | JSBS |
| Model Number : | Q345 |
| Certification : | ISO9001:2008 |
| Price : | USD 30~300 per set |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 200 set per day |
| Delivery Time : | within 15 work days |
We can design products as customers' demand or manufacture for you
if you have pictures or drawing.
Also, if you want to consult the price, please provide the drawings
so that we can tell you the price quickly and accurately.
Steel Pole of National Electrification Administration (Philippines)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT,
45FT
| Height(ft) | Thickness(mm) | Butt Diameter(mm) | Top Diameter(mm) | Design Load(kg) | Yield Stress(MPA) | Zinc Coating(microns) |
| 25 | 2.5 | 152 | 120 | 300 | 345 | 86 |
| 30 | 3.0 | 226 | 127 | 500 | 345 | 86 |
| 35 | 3.0 | 248 | 127 | 500 | 345 | 86 |
| 40 | 3.0 | 317 | 127 | 500 | 345 | 86 |
| 45 | 4.0 | 328 | 127 | 750 | 345 | 86 |
Details
| Height | 35FT |
| Type | Burial Type |
| Shape of pole | Octagonal |
| Diameter | 127mm / 248mm |
| Material | Q345 equivalent to S355JR,Grade 50 |
| Thickness | 3.0mm |
| Design Load | 500KGS |
| Welding | Welding complies with CSA and AWS, AWS D1.1 standard. The welders have got corresponding certificate after testing and inspection. |
| Standard | NEA |
| Galvanizing | Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123. |
| Voltage | 15kv |
| Fabrication process | Cutting plate, bending ,forming, automatic welding, drilling holes ,quality check before galvanized, hot dip galvanized, final quality check according to client's requirement. |
Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345, Q420, Q460 used in China.
| CHINA-GB | AMERICA-ASTM | EQUIVALENT |
| Q235 | Grade D | SS400, S235JO |
| Q345 | Grade50 | S355JR |
| Q420 | Grade60 | S420NL |
| Q460 | Grade65 | S460NL |

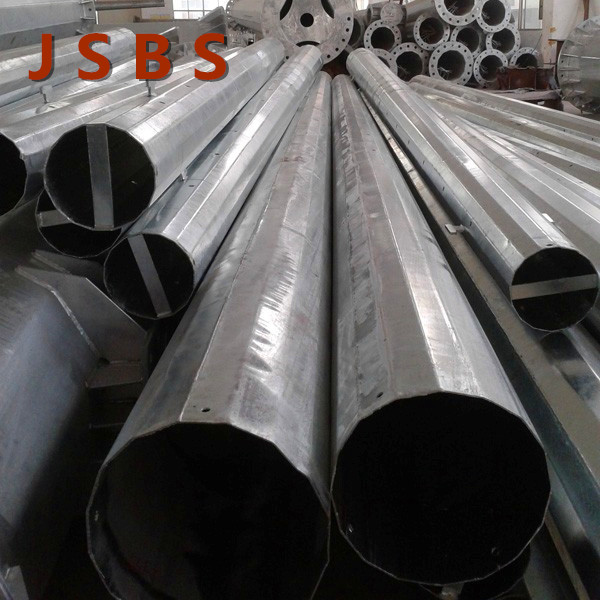

The octangle steel electrical poles of our company are made of
qualified sheets through bending, forming, automatic welding, hot
dip galvanization. We own advanced production lines, including auto
shearing machine,1600 ton CNC hydraulic bending machine,CNCcutting
machine,auto submerged-arc welding machine,auto welding
machine,hydrautic trimmer,splitting machine, and our workmanship
and quality control are thought highly of by our clients.
1. Are you a manufacturer or a trading company?
A:We are the direct factory manufacturer and the trading company.
2. Where is your company located?
A:Our factory is located in Industrial Zone, Heqiao Town, Yixing
District, Wuxi City, Jiangsu Province, China(mainland).
3. What are your main products?
A:Our main products are electric poles, street lighting poles, high
mast pole, telecommunication tower poles, traffic signal poles,
wind generation poles, etc.
4. What's your nearest port?
A: Shanghai Port.
5. What's your payment term?
A: Normally 30% deposit and rest by TT before shipping. Or L/C.
6. What's your delivery time?
A: Normally within 30 working days.
