Jiangsu Baojuhe Science and Technology Co., Ltd. (previous name Jiangsu Bosheng Steel Poles Co.,Ltd)
10 Years
| Ask Lasest Price | |
| Brand Name : | JSBS |
| Model Number : | Q345 |
| Certification : | ISO9001:2008 |
| Price : | USD 30~300 per set |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 200 set per day |
| Delivery Time : | within 15 work days |
We can design products as customers' demand or manufacture for you
if you have pictures or drawing.
Also, if you want to consult the price, please provide the drawings
so that we can tell you the price quickly and accurately.
Our Products
Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345, Q420, Q460 used in China.
1.All of our material are purchased from famous mill factory to
assure the quality.
2.A mill certificate issued by the mill factory with stamp and
signature must be provided before unload the material in our
factory ,otherwise we have our reason to refuse the material.
3.Before put into production ,all the material must pass the
chemical and physical analysis to make sure that they have meet the
requested strength and component.
Details
| Type | Burial Type |
| Shape of pole | Octagonal |
| Diameter | 127mm / 248mm |
| Material | Q345 equivalent to S355JR,Grade 50 |
| Thickness | 3.0mm |
| Design Load | 500KGS |
| Welding | Welding complies with CSA and AWS, AWS D1.1 standard. The welders have got corresponding certificate after testing and inspection. |
| Standard | NEA |
| Galvanizing | Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123. |
| Voltage | 15kv |
| Fabrication process | Cutting plate, bending ,forming, automatic welding, drilling holes ,quality check before galvanized, hot dip galvanized, final quality check according to client's requirement. |
Steel Pole of National Electrification Administration (Philippines)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT,
45FT
| Height(ft) | Thickness(mm) | Butt Diameter(mm) | Top Diameter(mm) | Design Load(kg) | Yield Stress(MPA) | Zinc Coating(microns) |
| 25 | 2.5 | 152 | 120 | 300 | 345 | 86 |
| 30 | 3.0 | 226 | 127 | 500 | 345 | 86 |
| 35 | 3.0 | 248 | 127 | 500 | 345 | 86 |
| 40 | 3.0 | 317 | 127 | 500 | 345 | 86 |
| 45 | 3.0 | 328 | 127 | 500 | 345 | 86 |
Jiangsu Baojuhe Science and Technology Co.,Ltd (the old name
Jiangsu Bosheng Steel Poles Co.,Ltd) is located in Heqiao Town
Industrial Zone, Yixing District, Wuxi City, Jiangsu Province,
China.
The company covers an area of 50000 square meters, and the registered capital is 60080000 RMB. With 100 staff working together, the annual capacity of our factory is more than 30000 tons of steel poles and steel tube components. Moreover, our factory has the professional engineer team, experienced overseas department and domestic marketing department. Advanced test equipment, high-quality producing machines and sophisticated technology ensures us to provide the best products and services to meet customers' different requirements.
Through the efforts of the company staff, the support and cooperation from clients all over the world, our company's products have been exported to Philippines, Australia, America, Africa, Latin America, Jordan, Panama, etc. We have good export experience with 2 containers exported overseas in average every day.
'Close cooperation with our clients and persistent innovation for our clients ' is our team principle. 'Quality first, customer focus' is our managing principle. We are looking forward to cooperating with you to create a win-win situation and a bright future.
Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345, Q420, Q460 used in China.
1.All of our material are purchased from famous mill factory to
assure the quality.
2.A mill certificate issued by the mill factory with stamp and
signature must be provided before unload the material in our
factory ,otherwise we have our reason to refuse the material.
3.Before put into production ,all the material must pass the
chemical and physical analysis to make sure that they have meet the
requested strength and component.
Details
| Type | Burial Type |
| Shape of pole | Octagonal |
| Diameter | 127mm / 248mm |
| Material | Q345 equivalent to S355JR,Grade 50 |
| Thickness | 3.0mm |
| Design Load | 500KGS |
| Welding | Welding complies with CSA and AWS, AWS D1.1 standard. The welders have got corresponding certificate after testing and inspection. |
| Standard | NEA |
| Galvanizing | Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123. |
| Voltage | 15kv |
| Fabrication process | Cutting plate, bending ,forming, automatic welding, drilling holes ,quality check before galvanized, hot dip galvanized, final quality check according to client's requirement. |
Material
| CHINA-GB | AMERICA-ASTM | EQUIVALENT |
| Q235 | Grade D | SS400, S235JO |
| Q345 | Grade50 | S355JR |
| Q420 | Grade60 | S420NL |
| Q460 | Grade65 | S460NL |

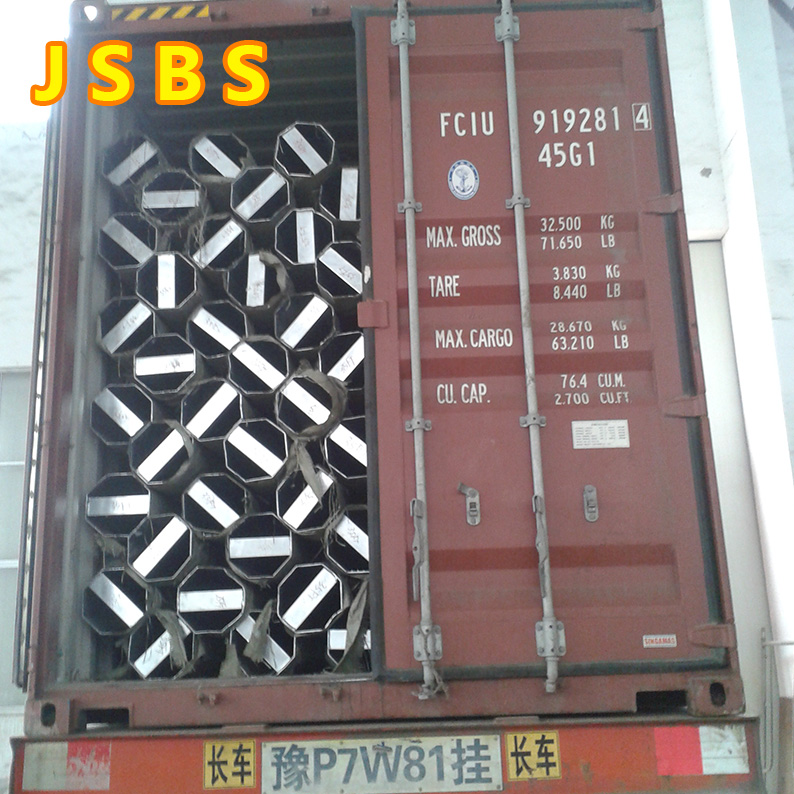

Packing & Delivery
Because of there is nearly no any accessories on the poles shaft,so
most of the clients agree with delivery the 25ft -45ft steel poles
without package which can save the space of the container,and also
can save the purchasing cost.
Of cause,if our clients have request or standard for the package of
the steel poles,we are also glad to packing the steel poles
according to client's request.
1. Are you a manufacturer or a trading company?
A:We are the direct factory manufacturer and the trading company.
2. Where is your company located?
A:Our factory is located in Industrial Zone No.37, Heqiao Town,
Yixing District, Wuxi City, Jiangsu Province, China(mainland).
3. What are your main products?
A:Our main products are electric poles, street lighting poles, high
mast pole, telecommunication tower poles, traffic signal poles,
wind generation poles, etc.
4. What's your nearest port?
A: Shanghai Port.
5. What's your payment term?
A: Normally 30% deposit and rest by TT before shipping. Or L/C.
6. What's your delivery time?
A: Normally within 30 working days.
