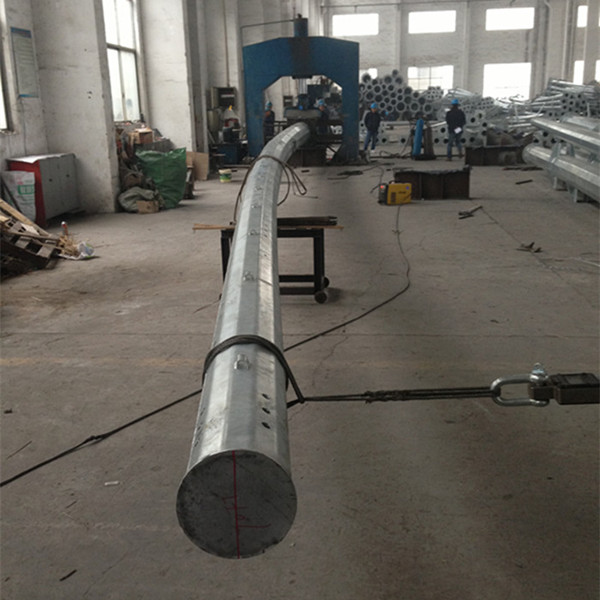

10KV Single Circuit Hot Dip Galvanized Electric Steel Power Poles
with Steel A345 Q460
| Material: | Hot rolled steel, Q235,Q345,S235,S355,SS400,Gr 50 |
| Yield strength of Material: | Minimum yield strength>=235n/mm2 for Q235, S235 and SS400 Minimum yield strength>=345n/mm2 for Q345 S355 and Gr 50 |
| Pole’s height: | 7m –30m |
| Length of one part | Within 14m once forming without slip joint |
| Wall thickness: | 2.5mm-30mm |
| Pole's Shape Can be made: | Round, Polygonal, Taper Octagonal, Taper round, Round conical, Taper Square, Square. |
| Arm type can be made: | Single arm, Double arm, Tri-arm, Four-arm |
| Arm Diameter: | Diameter as 42mm, 48mm, 60mm, 76mm and etc, can fit to any diameter’s lamps. |
| Power: | 10 KV Others Voltage available, 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others ) |
| Welding | Advanced submerge-arc welding and CNC welding equipment. It has past flaw testing, internal and external double welding makes the welding beautiful in shape. It confirms with the international welding standard of CWB and AWS D 1.1 |
| Galvanization: | Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standardGB/T 13912-2002 or American standard ASTM A123, ISO: 2626-1985. |
| Manufactury Capacity Per Day: | 250 pcs |
Wall thickness Tolerance: | +- 0.1mm from 2.3mm to 4mm. +- 0.2mm from 5mm to 20mm. +- 0.5mm from 22mm to 30mm |
| Painting color: | (RAL)Color card or Refer to client’s requirement |
| Surface treatment 1: | Black pole, Rough pole |
| Surface treatment 2: | Hot dip Galvanizing antirust. |
| Surface treatment 3: | Hot dip galvanizing with powder coating |
| Temperature range | -35 °C~+45 °C |
| Wind Speed: | Aganist wind pressure of 120Km/h to 180Km/h, it according to client’s design. |
| Base plate mounted | Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement. |
| Ground mounted: | The length buried underground as per customer’s requirement. |
| Quality Control | According to ISO9001-2008 requirements. |
| Certificates | ISO9001-2008, SGS Audited Supplier, The AAA grade certificate of goodwill |
| Other | Less land occupation & easy maintenance |
Description:
1) Higher quality lower cost to win the competitive price
2) 3 production lines to ensure fast delivery
3) Skilled manufacturer, quality control and technical team
4) Warranty of quality : more than 20 years
After - Sales Service
Our staff supply excellent after service, track and get the product information after our client got the products. We asked our client to fill a “Survey form for Satisfaction degree from Client”. We will solve the problems from client in 24 hours ,and we improve the quality and working method according to client’s good suggestions.
Standard Accessories
- Top Cap
- Base plate
- Bottom strip
- Standard hole
- Climbing rung
- Anchor bolt
- Bituminous protection
- Painted marking
- Removable ladder
- Grounding Nuts & Bolts
Production Process
Material Test:
1. All of our material are purchased from famous mill factory to
assure the quality.
2. A mill certificate issued by the mill factory with stamp and
signature must be provided before
unload the material in our factory;
3. Before put into production, all the material must pass the
chemical and physical analysis to
make sure that they have met the requested strength and component.
Terms and Conditions
1. Price Term: EXW, FOB, CFR or CIF.
Ø EXW: Poles Cost
Ø FOB : Pole Cost + Land Transportation + Fee on Port
Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight
Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.
2. MOQ: One 40FT Container.
3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight
before shipment. Other payment way can be negotiated.
4. Delivery Time: 15 working days per container after PI / drawing / prepayment
confirmed.
5. Package: Normally wrapped by plastic bags or burlap cloth at the top and
bottom,or according to clients’ requirement.
Company Introduce:
Through the efforts of the company staff, the support and
cooperation from all over the world. The company's products have
been exported to Philippines, Malaysia, Australia, America, Africa,
Latin America, Panama, Suriname, Costa Rica, Colombia, Jordan,
Nigeria, etc. We have good export experience and with 1 container
export to World in average every day.
|
|
