Jiangsu Baojuhe Science and Technology Co., Ltd. (previous name Jiangsu Bosheng Steel Poles Co.,Ltd)
10 Years
| Ask Lasest Price | |
| Brand Name : | JSBS |
| Model Number : | BS/GS - 5 |
| Certification : | ISO9001:2008 |
| Price : | Negotiation |
| Payment Terms : | L/C, T/T, Western Union, D/P |
| Supply Ability : | 2500 Ton per month |
| Delivery Time : | 15 ~ 25 work day |
30FT 35FT Hot Dip Galvanized Octagonal Steel Pole in 500kgs Design Load
| Material: | Steel Q235, SS400 ; Q345 , Gr50. |
| Yield strength of Material: | Minimum yield strength ≥345n/mm2 |
| Pole’s height: | 30FT , 9150MM ; 35FT 10670MM |
| Section | 1 |
| Wall thickness: | 2.75MM , 3.0MM |
| Pole's Shape : | Octagonal |
| Power: | 69LV |
| Welding | Welding in accordance with standard of CWB and AWS D 1.1 |

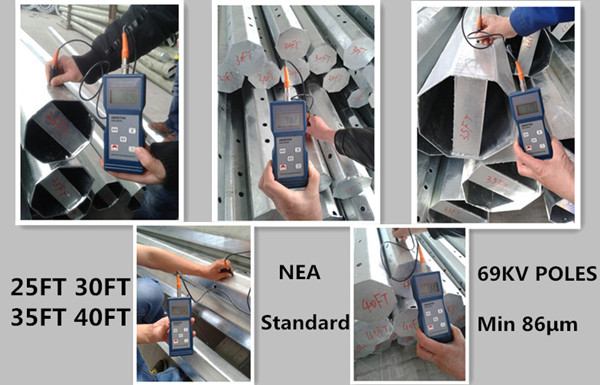

| Galvanization: | Hot dip galvanization with min thickness 86µm on average in accordance with Chinese standardGB/T 13912-2002 or American standard ASTM A123, ISO: 2626-1985. |
| Manufactury Capacity Per Day: | 250 pcs |
Wall thickness Tolerance: | +- 0.1mm from 2.3mm to 4mm. +- 0.2mm from 5mm to 20mm. +- 0.5mm from 22mm to 30mm |
| Diameter: | 127mm / 226mm |
| Finishing | Hot Dip Galvanized |
| Temperature range | -35 °C~+45 °C |
| Wind Speed: | Aganist wind pressure of 120Km/h to 180Km/h. |
| Install Type | Burial Type |
| Design Load: | 500 kgs |
| Quality Control | According to ISO9001-2008 requirements. |
| Certificates | ISO9001-2008, SGS Audited Supplier, The AAA grade certificate. |
| Other | Less land occupation & easy maintenance |
Description:
Standard Accessories
- Top Cap
- Butt Plate
- Standard hole
- Grounding Nuts & Bolts
- Bolts
Philippines Nea Standard Steel Poles 25FT, 30FT, 35FT, 40FT,45FT
Height (ft) | Thickness (mm) | Butt Diameter (mm) | Tip Diameter (mm) | Design Load (kg) | Yield Stress (MPA) | Zinc Coating (microns) |
| 25 | 2.5 | 152 | 120 | 300 | 345 | 86 |
| 30 | 3.0 | 226 | 127 | 500 | 345 | 86 |
| 35 | 3.0 | 248 | 127 | 500 | 345 | 86 |
| 40 | 3.0 | 317 | 127 | 500 | 345 | 86 |
| 45 | 4.0 | 328 | 127 | 750 | 345 | 86 |
Through the efforts of the company staff, the support and cooperation from all over the world. The company's products have been exported to Philippines, Malaysia, Australia, America, Africa, Latin America, Panama, Suriname, Costa Rica, Colombia, Jordan, Nigeria, etc. We have good export experience and with 1 container export to World in average every day.
Production Process
Our Services
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM & UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles
for more than 10 years, competitive with good quantity.
7 Sample: We can send out sample for test in one week if the order quantity is big enough.
But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8. As an honest seller, we always use superior raw material, advanced machines,
skilled technicians to ensure our products to be finished in high quality and stable feature.
Terms and Conditions
1. Price Term: EXW, FOB, CFR or CIF.
Ø EXW: Poles Cost
Ø FOB : Pole Cost + Land Transportation + Fee on Port
Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight
Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.
2. MOQ: One 40FT Container.
3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight
before shipment. Other payment way can be negotiated.
4. Delivery Time: 15 working days per container after PI / drawing / prepayment
confirmed.
5. Package: Normally wrapped by plastic bags or burlap cloth at the top and
bottom,or according to clients’ requirement.
|
|
