    Metal Electric Steel power distribution pole , galvanized metal posts 25 years Warrantly

    Ask Lasest Price
    Brand Name : JSBS
    Model Number : BS/GS - 18
    Certification : ISO9001:2008
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, D/P
    Supply Ability : 2500 Ton per month
    Delivery Time : 15 ~ 25 work day
    • Product Details
    • Company Profile

    Metal Electric Steel power distribution pole , galvanized metal posts 25 years Warrantly

    Metal Electric Steel power distribution pole , galvanized metal posts 25 years Warrantly

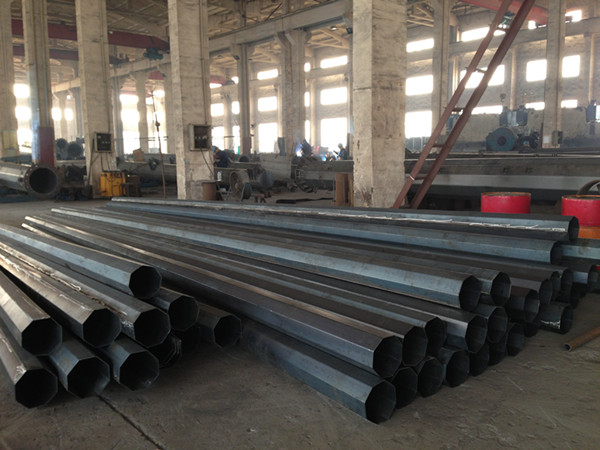

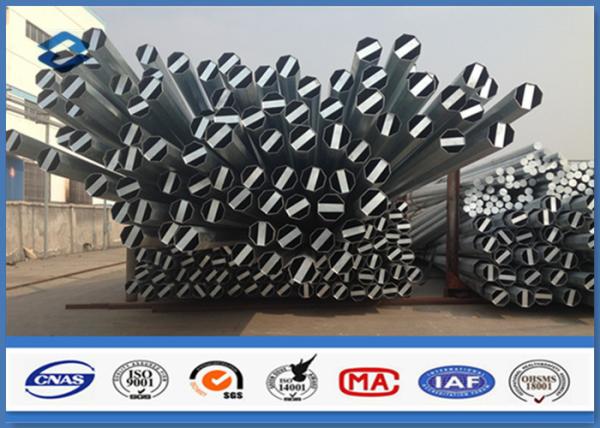

    Metal Electric Steel Distribution Power Pole wit Hot Dip Galvanization

    Specification

    TypeBurial
    ApplicantElectrical Distribution n Power Line
    ShapeOctagonal
    Material

    Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345 used in China.
    Q235 equipment to SS400. Min Yield Stress 235 Mpa.
    Q355 equivalent to S355JR. Gr 50. Min Yield Stress 345 Mpa.

    Tolerance of dimension+- 2%
    Power10 KV ~550 KV
    Safety FactorSafety factor for conducting wine : 8
    Safety factor for grounding wine : 8
    Design Load in Kg300~ 1000 Kg applied to 50cm from the top pole
    Surface treatmentHot dip galvanized in accordance with ASTM A 123.
    SectionOne
    Design of poleAgainst earthquake of 8 grade
    Wind Speed160 Km/Hour . 30 m /s
    Minimum yield strength355 mpa
    Minimum ultimate tensile strength470 mpa
    Max ultimate tensile strength630 mpa
    StandardISO 9001 : 2008
    PaintingBituminous Painting
    WeldingWelding complies with AWS D1.1 standard.
    Thickness3.0mm, 3.5mm, 4.0mm
    Production ProcessRaw material test → Cutting →Molding or bending →Welding
    (longitudinal )→Dimension verify →Flange welding →Hole drilling
    →Calibration→ Deburr →Galvanization or powder coating ,painting→Recalibration →Thread →Packages



    Description

    Through the efforts of the company staff, the support and cooperation from all over the world. The company's products have been exported to Philippines, Malaysia, Australia, America, Africa, Latin America, Panama, Suriname, Costa Rica, Colombia, Jordan, Nigeria, etc. We have good export experience and with 1 container export to World in average every day.

    1. A factory certificate issued by the factory with stamp and signature must be provided before unloading the material in our factory , otherwise we have rights to refuse.
    2. Before put into production , all the material must be passed the chemical and physical analysis to make sure that they have met the requested strength and component.

    To assure our products qualified , we take steps as follows :

    1. Management team : We have employed the experienced senior experts to take charge of the whole management ,especially the technical management and quality management .

    2. Introducing ISO management :We are aware of ISO 9001:2008 certificate .

    3. QC Inspection :It is our company policy that all the finished products should be inspected by our specialized QC in every manufacture step and before each shipment

    Others Standard poles 25FT, 30FT, 35FT, 40FT,45FT

    Height
    (ft)

    Thickness
    (mm)

    Butt Diameter
    (mm)

    Tip Diameter
    (mm)

    Design Load
    (kg)

    Yield Stress
    (MPA)

    Zinc Coating
    (microns)

    252.515212030034586
    303.022612750034586
    353.024812750034586
    403.031712750034586
    454.032812775034586



    Material Test:
    1. All of our material are purchased from famous mill factory to assure the quality.
    2. A mill certificate issued by the mill factory with stamp and signature must be provided before
    unload the material in our factory;
    3. Before put into production, all the material must pass the chemical and physical analysis to
    make sure that they have met the requested strength and component.



    Production Process

    • Raw material test
    • Cutting
    • Bending
    • Welding (longitudinal )
    • Dimension verify
    • Flange welding
    • Hole drilling
    • Calibration
    • Deburr
    • Galvanization or powder coating or Bituminous painting
    • Recalibration
    • Packages









    Terms and Conditions


    1. Price Term: EXW, FOB, CFR or CIF.

    Ø EXW: Poles Cost

    Ø FOB : Pole Cost + Land Transportation + Fee on Port

    Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight

    Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.


    2. MOQ: One 40FT Container.


    3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.


    4. Delivery Time: 15 working days per container after PI / drawing / prepayment confirmed.


    5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom,or according to clients’ requirement.
