    Middle Voltage Dodecagonal Power Transmission Pole 470 Mpa ~ 630 Mpa Tensile Strength

    Ask Lasest Price
    Brand Name : JSBS
    Model Number : BS/PT - 08
    Certification : ISO9001:2008
    Price : Negotiation
    Payment Terms : D/P, L/C, T/T, Western Union
    Supply Ability : 2500 Ton per month
    Delivery Time : 15 - 25 work days
    • Product Details
    • Company Profile

    Middle Voltage Dodecagonal Power Transmission Pole 470 Mpa ~ 630 Mpa Tensile Strength

    Dodecagonal Hot Dip Galvanized Electrical Transmission Power Pole for Middle Voltage


    Specification


    Products
    • Dodecagonal Hot Dip Galvanized Electrical Transmission Power Pole for Middle Voltage
    Type
    • Burial Type
    Voltage Grade
    • 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others )
    Height
    • ≥ 15M .
    Shape
    • Conical / Round
    • Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc).
    Material
    • Hot Roll Steel Sheet Q345, GR50 which equivalent to S355JR.
    • Min Yield Stree 345 Mpa
    • Tensile Strength 470 Mpa ~ 630 Mpa
    Wall thickness
    • 3 ~ 20mm
    Once Forming
    • 14m Once forming without joint
    • 40GP, 40HQ container Length is 12m , so the poles will be or more than 2 segments if longer than 12m.
    Welding
    • Welding complies with AWS D1.1 standard.
    • CO2 welding or submerged arc auto methods
    • No fissure, scar, overlap, layer or other defects
    • Internal and external welding
    • Ensure 100% complete penetration welds.
    Joint
    • Joint with insert mode, flange mode.
    Base plate
    • Base plate is square/round/Polygon with slotted holes for anchor bolts installation.


    Description


    1) Steel materials conform to ASTM A36 with Q235(S235,SS400),Q345(S355JR), Q460,etc


    2) Welding: Welding complies with CSA and AWS, AWS D1.1 standard.


    3) Finish: Hot-dip galvanized in accordance with ASTM A123. Min Zinc Coating 86 microns.


    4) Pole Height: Transmission pole ≥ 15M


    5) Pole shape: Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc


    6) Type: Straight Pole ,Tensile Pole ,Turn Pole (Double-loop corner pole, Single or double loops/circuit pole,

    single or double tensile/terminal/straight pole, etc)


    7) Surface hot-dip-galvanized and sometimes with Bituminous Painting as customer's request.


    8) Resistant: against earthquake of 8.8 grade. Wind speed as design.


    9) Quality Standard: ISO9001:2000,AAA credit rating


    10) Easy install and maintenance


    11) Packages: Normally covered by sack or as customer’s requirement.


    12) Voltage:10-550KV



    Accessories:


    1. Pole

    2. Base Plate

    3. Pole Top Cap

    4. Butt Bearing Plate

    5. Holes

    6. CrossArm

    7. Grounding Nut & Bolts

    8. Anchor Bolts

    9. Climbing Rungs

    10. Identification Plate

    11. Bituminous Painting if needed

    12. Hot dip galvanized.

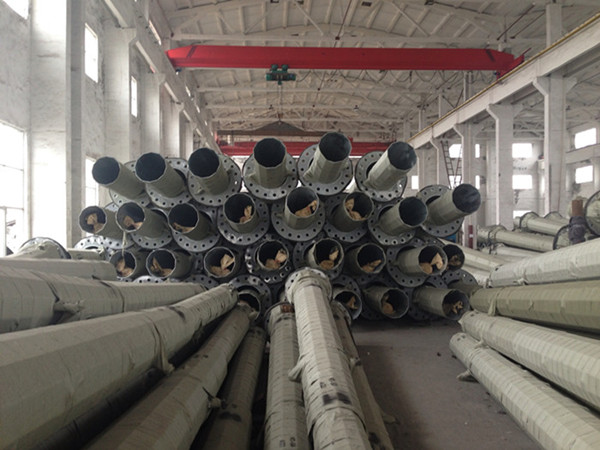

    Production Line

    The fabrication process as cutting plate, bending/forming, automatic welding, drill holes, quality check before galvanized, hot dip galvanized , recalibration, inspect according to client’s required then delivery on time as Constract


    Our Services


    1. Reply your inquiry in 24 working hours.


    2. Experienced staffs answer all your questions in fluent English.


    3. Customized design is available. UEM & UBM are welcomed.


    4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.


    5. Special discount and protection of sales are provided to our distributor.


    6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles

    for more than 10 years, competitive with good quantity.


    7 Sample: We can send out sample for test in one week if the order quantity is big enough.

    But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.


    8. As an honest seller, we always use superior raw material, advanced machines,

    skilled technicians to ensure our products to be finished in high quality and stable feature.


    Terms and Conditions


    1. Price Term: EXW, FOB, CFR or CIF.


    Ø EXW: Poles Cost

    Ø FOB : Pole Cost + Land Transportation + Fee on Port

    Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight

    Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.


    2. MOQ: One 40FT Container.


    3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other

    payment way can be negotiated.


    4. Delivery Time: 15 working days per container after PI / drawing / prepayment confirmed.

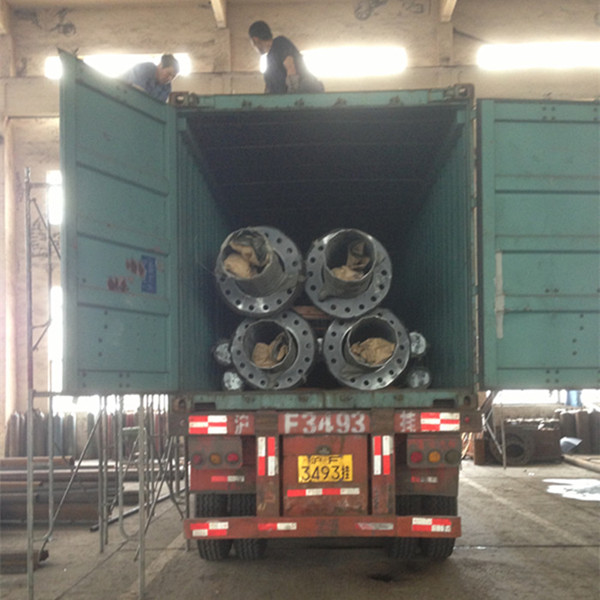

    5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom,or according to clients’

    requirement.


    We provide design and quote within 24 hours. We are patience to answer your question. Help client to understand the product better. Close cooperation with our clients and persistent innovation for our clientsare our team principles.Quality first,customer-paramountare our managing principles. Looking forward to cooperate with the friends from all over the world.
