    Steel Q235 Q345 Galvanized Steel Pole Aganist wind pressure of 120Km / h - 180Km / h

    Ask Lasest Price
    Brand Name : JSBS
    Model Number : BS/GS - 03
    Certification : ISO9001:2008
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, D/P
    Supply Ability : 2500 Ton per month
    Delivery Time : 15 ~ 25 work day
    • Product Details
    • Company Profile

    Steel Q235 Q345 Galvanized Steel Pole Aganist wind pressure of 120Km / h - 180Km / h


    Material Steel Q235 Q345 Hot Dip Galvanized Octagonal Steel Pole , Metal Pole

    Material:

    Steel Q235, SS400 ; Q345 , Gr50.

    Yield strength of Material:

    Minimum yield strength ≥345n/mm2


    Pole’s height:

    6m, 7m, 8m, 9m, 10m, 11m, 12m

    Section

    1

    Wall thickness:

    2.5mm ~6.0mm

    Pole's Shape :

    Octagonal

    Power:

    Low Voltage, Middle Voltage , High Voltage

    Welding

    Welding in accordance with standard of CWB and AWS D 1.1

    Galvanization:

    Hot dip galvanization with min thickness 86µm on average in accordance with Chinese standardGB/T 13912-2002 or American standard ASTM A123, ISO: 2626-1985.

    Manufactury Capacity Per Day:250 pcs

    Wall thickness Tolerance:


    +- 0.1mm from 2.3mm to 4mm. +- 0.2mm from 5mm to 20mm. +- 0.5mm from 22mm to 30mm


    Diameter:

    as design according to the design load

    Finishing

    Hot Dip Galvanized

    Temperature range

    -35 °C~+45 °C

    Wind Speed:

    Aganist wind pressure of 120Km/h to 180Km/h.

    Install Type

    Burial Type

    Design Load:

    As request

    Quality Control

    According to ISO9001-2008 requirements.

    Certificates

    ISO9001-2008, SGS Audited Supplier, The AAA grade certificate.

    OtherLess land occupation & easy maintenance

    Description


    The Hot Dip Galvanized Octagonal Steel Pole was design as customer's request. For Lower ,Middle, Higher Voltage distribution use. And with burial type in one section. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.


    Advantages


    • Short Construction Cycle
    • Less Land Occupation
    • Low Overall Cost
    • Easy Installation and Maintenance
    • Weather Resistance
    • Anti-corrosion
    • ODM & OEM are available
    • Capable to Handle Volume Orders
    • Provide Professional Design by Our Experienced R&D Engineers

    Standard Accessories


    - Top Cap
    - Butt Plate
    - Standard hole on X-X , Y-Y , Z-Z.
    - Grounding Nuts & Bolts


    Others Standard poles 25FT, 30FT, 35FT, 40FT,45FT


    Height

    (ft)

    Thickness

    (mm)

    Butt Diameter

    (mm)

    Tip Diameter

    (mm)

    Design Load

    (kg)

    Yield Stress

    (MPA)

    Zinc Coating

    (microns)

    252.515212030034586
    303.022612750034586
    353.024812750034586
    403.031712750034586
    454.032812775034586

    Production Process

    • Raw material test
    • Cutting
    • Bending
    • Welding (longitudinal )
    • Dimension verify
    • Flange welding
    • Hole drilling
    • Calibration
    • Deburr
    • Galvanization or powder coating or Bituminous painting
    • Recalibration
    • Packages


    Our Services


    1. Reply your inquiry in 24 working hours.


    2. Experienced staffs answer all your questions in fluent English.


    3. Customized design is available. UEM & UBM are welcomed.


    4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.


    5. Special discount and protection of sales are provided to our distributor.


    6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles

    for more than 10 years, competitive with good quantity.


    7 Sample: We can send out sample for test in one week if the order quantity is big enough.

    But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal

    order.


    8. As an honest seller, we always use superior raw material, advanced machines,

    skilled technicians to ensure our products to be finished in high quality and stable feature.




    Terms and Conditions

    1. Price Term: EXW, FOB, CFR or CIF.

    Ø EXW: Poles Cost

    Ø FOB : Pole Cost + Land Transportation + Fee on Port

    Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight

    Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.


    2. MOQ: One 40FT Container.


    3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment.

    Other payment way can be negotiated.


    4. Delivery Time: 15 working days per container after PI / drawing / prepayment confirmed.

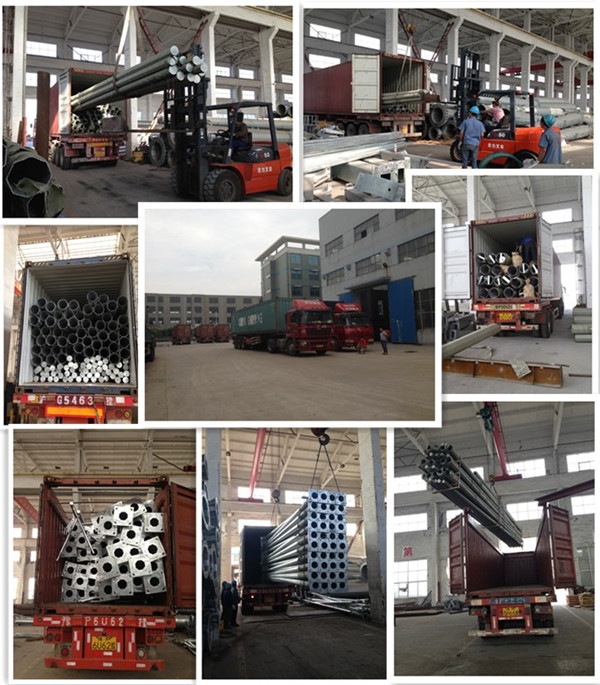

    5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom,or according to

    clients’ requirement.


    Company Introduce:

    Jiangsu Baojuhe Science and Technology Co.,Ltd. (previous name Jiangsu Bosheng Steel Poles Co.,Ltd.) is located in Heqiao Town Industrial Zone, Yixing District, Wuxi City, Jiangsu Province, China.

    Baojuhe is the specialized manufacturer of various steel poles and steel components including street lighting poles, electric power poles, traffic signal poles, flag poles, wind power poles and microwave communication towers, etc.

    Through Shanghai Port, which is one of the largest ports in China, we export poles to South America, Middle East, Africa, Australia, Philippines and other countries.
