Jiangsu Baojuhe Science and Technology Co., Ltd. (previous name Jiangsu Bosheng Steel Poles Co.,Ltd)
10 Years
| Ask Lasest Price | |
| Brand Name : | JSBS |
| Model Number : | BS/GS - 10 |
| Certification : | ISO9001:2008 |
| Price : | Negotiation |
| Payment Terms : | L/C, T/T, Western Union, D/P |
| Supply Ability : | 2500 Ton per month |
| Delivery Time : | 15 ~ 25 work day |
Low Voltage Hot Dip Galvanized Octagonal Steel Pole , Metal Pole with Bituminous Painting
Specification
| Type | Burial |
| Applicant | Electrical Distribution Power Line |
| Shape | Octagonal |
| Material | Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345 used in China. Q235 equipment to SS400. Min Yield Stress 235 Mpa. Q345 equivalent to S355JR. Gr 50. Min Yield Stress 345 Mpa. |
| Tolerance of dimension | +- 2% |
| Power | 10 KV ~550 KV |
| Safety Factor | Safety factor for conducting wine : 8 Safety factor for grounding wine : 8 |
| Design Load in Kg | 300~ 1000 Kg applied to 50cm from the top pole |
| Surface treatment | Hot dip galvanized in accordance with ASTM A 123. |
| Section | One |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160 Km/Hour . 30 m /s |
| Minimum yield strength | 355 mpa |
| Minimum ultimate tensile strength | 470 mpa |
| Max ultimate tensile strength | 630 mpa |
| Standard | ISO 9001 : 2008 |
| Painting | Bituminous Painting |
| Welding | Welding complies with AWS D1.1 standard. |
| Thickness | 3.0mm, 3.5mm, 4.0mm |
| Production Process | Raw material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration→ Deburr →Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
| Advantage |
|
Description
Through the efforts of the company staff, the support and cooperation from all over the world. The company's products have been exported to Philippines, Malaysia, Australia, America, Africa, Latin America, Panama, Suriname, Costa Rica, Colombia, Jordan, Nigeria, etc. We have good export experience and with 1 container export to World in average every day.
Others Standard poles 25FT, 30FT, 35FT, 40FT,45FT
Height (ft) | Thickness (mm) | Butt Diameter (mm) | Tip Diameter (mm) | Design Load (kg) | Yield Stress (MPA) | Zinc Coating (microns) |
| 25 | 2.5 | 152 | 120 | 300 | 345 | 86 |
| 30 | 3.0 | 226 | 127 | 500 | 345 | 86 |
| 35 | 3.0 | 248 | 127 | 500 | 345 | 86 |
| 40 | 3.0 | 317 | 127 | 500 | 345 | 86 |
| 45 | 4.0 | 328 | 127 | 750 | 345 | 86 |
Material Test:
1. All of our material are purchased from famous mill factory to
assure the quality.
2. A mill certificate issued by the mill factory with stamp and
signature must be provided before
unload the material in our factory;
3. Before put into production, all the material must pass the
chemical and physical analysis to
make sure that they have met the requested strength and component.
Production Process
Best Service: --At Jiangsu Baojuhe Science and Technology Co.,Ltd, we always provide our clients with great quality products and superior Customer service. |
Quick Lead Time.--We inform our cistomers the exact delivery time when they place the order and then strictly following on when we agreed. |
Unbeatable Prices-- We continuously strive to find ways of reducing our production costs, and saving the cost. |
| Unbeatable Quality --we always supply good quality also leading products to all of our customers. |
Brand Awareness -- The goal of any strong brand is achieve a level of awareness that instills the idea of quality and value into all of your customers. |
Special Offers. -- In order to maintain our competitive edge, we are constantly running special offers on our products, consumer goods, and design services. Contact our sales team to see how we can help you save a lot of money. |
| Special support.-- we have a policy term to support our VIP customers for products also payment. |
Terms and Conditions
1. Price Term: EXW, FOB, CFR or CIF.
Ø EXW: Poles Cost
Ø FOB : Pole Cost + Land Transportation + Fee on Port
Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight
Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.
2. MOQ: One 40FT Container.
3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight
before shipment. Other payment way can be negotiated.
4. Delivery Time: 15 working days per container after PI / drawing / prepayment
confirmed.

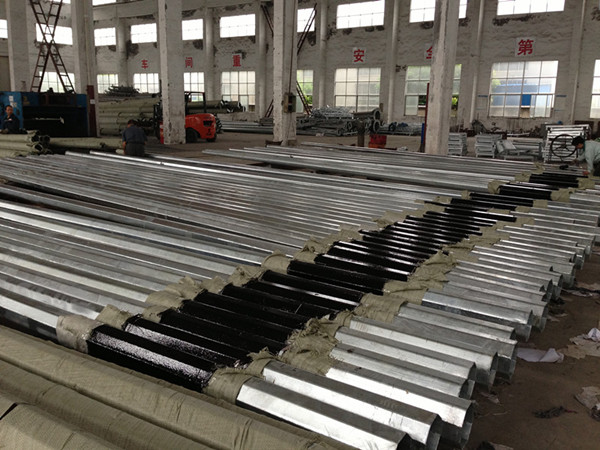

5. Package: Normally wrapped by plastic bags or burlap cloth at the top and
bottom,or according to clients’ requirement.
|
|
