12 Sides Hot Rolled Galvanized 25m High Flood Lighting Steel Pole

Description:

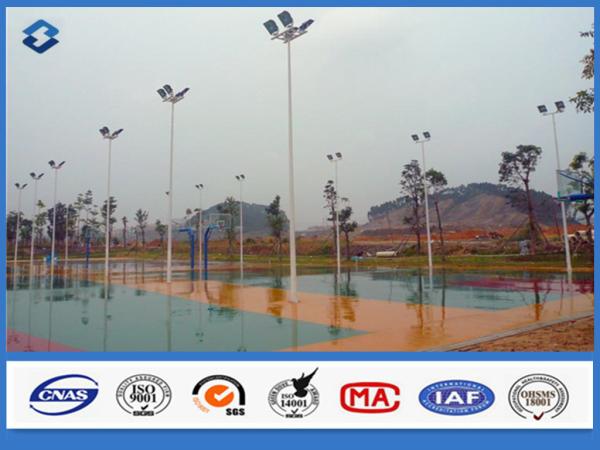

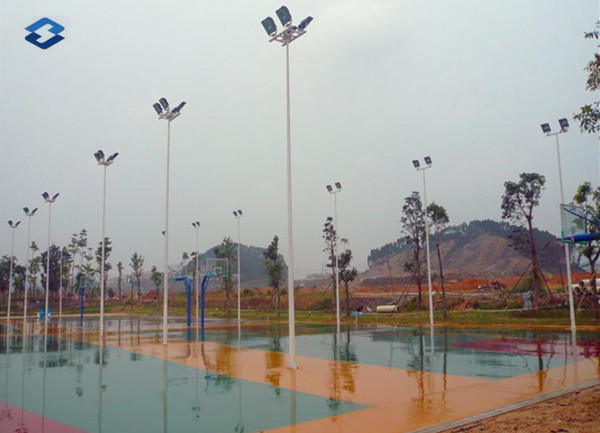

Our Floodlighting pole can be appied to the lighting of airport, sea port, plaza, stadium. And we have different headframe design for the the mounting for different quantity of floodlight
Designed and manufacutred for durability, corrosion resistance and visual appeal.

1.Height: 25 m.
2.Max length per section: 12 m
3.Thickness: 2.5mm ~ 30 mm
4.Shape: Conical or polygongal tapered
5.Material: Q235B/A283 M Gr.C / SS400/S235 JR / St 37-2 / Fe 360
Q345B/A572 M Gr. 50/S355 JR / ST 52-3/Fe 510
6.Lamp Power: 250W ~ 2000W (HPSL / MH)
7.Lifting system:Lifter fixed in the inner of the pole with lifting speed of 3 ~ 5 meter per minute
Euqiped with ectromagnetism brake and break-proof device, manual opeation applied under power cut.
8.Head frame: Our headframe can be designed as per customer requirment to carry camera or industrial antenna.
9.Finish: hot dipgalvanization, blasting, powder coating, painting.
10.Galvanization standard: ASTMA 123 / EN ISO 1461
11.Welding: AWS D 1.1 / BS EN 1011-1, BS EN 1011-2

Manufacturing

Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with best quality.
After the fabrication process such as cutting plate, bending, forming, automatic welding, drilling holes, we have poles checked before galvanized, hot dip galvanized and powder coating and finally we have poles checked according to client's various requirements.


Inspection
To ensure the quality, we have Microcomputer Automatic Carbon Sulfur Silicon Analyzer to check the raw material after purchasing the steel sheet.

Then we have Physical Performance Test, Mechanical Test, Galvanization Thickness Test, Load Test and Lad Test during and after the manufacturing process. All the effort is to meet our clients' requirements.


Factory Profile
Jiangsu Baojuhe Science and Technology Co.,Ltd. (previous name Jiangsu Bosheng Steel Poles Co.,Ltd.) is located in Heqiao Town Industrial Zone, Yixing District, Wuxi City, Jiangsu Province, China.

Baojuhe is the specialized manufacturer of various steel poles and steel components including street lighting poles, electric power poles, traffic signal poles, flag poles, wind power poles and microwave communication towers, etc.

Through Shanghai Port, which is one of the largest ports in China, we export poles to South America, Middle East, Africa, Australia, Philippines and other countries

Delivery
We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.

FAQ:
1. Port of Loading: Shanghai, China
2. Price term: EXW,FOB,CFR AND CIF.
3. Payment Term: 30%TT in deposit, 70%TT before shipment. Or LC.
4. Delivery: Based on your order quantity. Normally 15 days after receiving your deposit.

Founded in 2007, Jiangsu Baojuhe Science and Technology Co.,Ltd (Previously known as Jiangsu Bosheng steel Poles Co.,LTD.) is located in Heqiao Town Industrial Zone, Yixing District, Wuxi City, Jiangsu Province. Baojuhe is the specialized manufacturer of various steel poles including street lighting poles, electric power poles, traffic signal poles, flagpoles, wind power poles and microwave communication towers, etc.

Our company covers an area of 50,000 square meters, is equipped with around 150 staff, and the registered capital is 60,080,000 RMB. The annual output of our factory is more than 30,000 tons steel poles and steel tube components. Moreover, we are staffed by responsible and dedicated team members contributing significantly to the company. In addition，advanced testing equipment, high-quality manufacturing machines and sophisticated technology ensure us to provide our customers with the best products and services.

Through the efforts of the company staff，the support and cooperation from clients all over the world, our factory has been exporting the steel poles to the Philippines, Australia, America, Africa, Latin America, Jordan, Panama, etc. We have good export experience with on average 2 containers exported overseas per day.

Be devoted, be professional 'is our team principles. ‘ Quality guaranteed，customer foremost' is our managing principles. We are looking forward to cooperating with you hand in hand, creating a bright future.
